Help with ordering

  • Study plans are extracts from the plans allowing the buyer to have a more precise knowledge of the plan content. If you are ordering the building plan, you do not need to order the study plan.
  • The Building plan is the basic document to build the boat. It includes a free telephone or e-mail assistance.
  • Attention: this boat may be built only with a numerically cut plywood kit or with full size patterns provided by one of my partners. Due to the large quantity of required plywood panels, we recommend to choose the kit.
  • You may also buy the CNC cutting files allowing you sub-contracting the kit to a local company
  • The kit is to be ordered from one of my partners.
  • Postage and VAT, if applicable, are included in the shown prices.

24.00
24.00
6.00
6.00
636.00
636.00
576.00
576.00
360.00
660.00

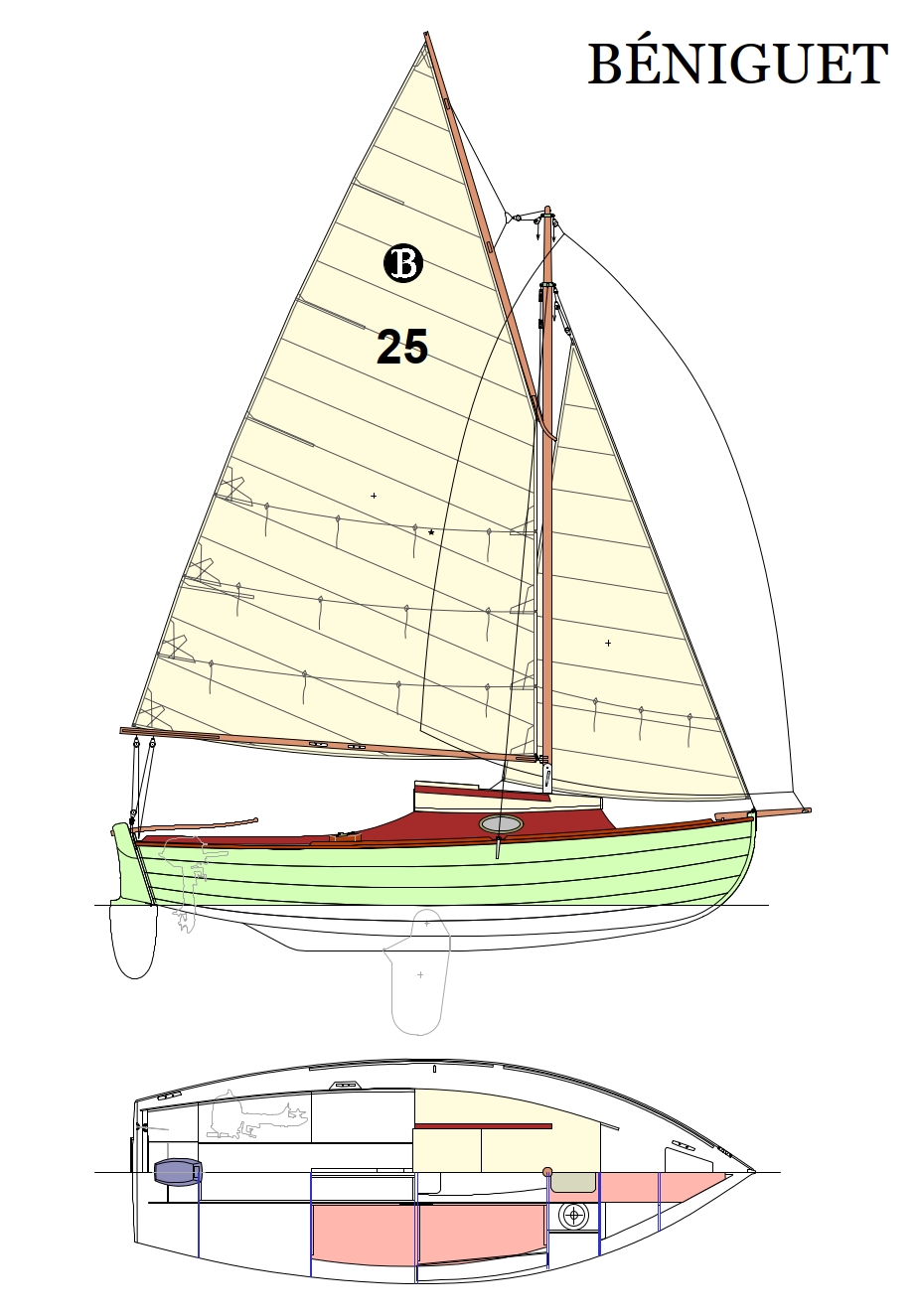

Trailerable classic cabin yacht, 5.85 m long

Hull length / waterline5.85 / 5.25 m Sail area20.3 m²
Breadth / waterline2.10 / 1.80 m Outboard motor6 hp
Draught0.43 / 1.20 mDesign category / CrewC4 / D5
Light weight880 kg Building time with kit1100 hours
Attention : this boat may be built only with either the full size patterns or a NC cut plywood kit. Due to the high quantity of plywood panels, the kit is highly recommended.
Beniguet is either a pocket cruiser or a day boat. As a cruiser, she offers a cabin with two quarter-berths and a third one forward at child size. It is even possible to sleep three adults with a fore berth extension. As a day boat, she welcomes her crew is a two-meter long cockpit which offers exceptional comfort and let you wandering along the coast. A lowered space on both sides of the motor well allows stowing a bucket or your fishing equipment.

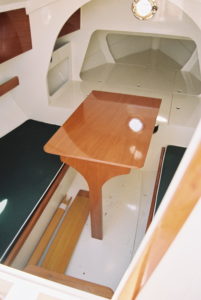

The cabin gives the possibility to take a meal or a cup of tea inside, to find a shelter if raining or some shade on a sunny day. Madam will find a chemical or marine toilet.
The steel centreboard rotates under the cockpit and does not obstruct the cabin. It gives Beniguet much higher performances than most of the small cruisers inspired by tradition. As usual, I gave a lot of importance to the pleasure of steering a good sail-boat.
The small keel, discontinued aft, makes the boat very easy to launch. It also protects the outboard motor installed in a well which is perfectly within reach of the helmsman, and placed in line with the rudder for easy manoeuvres. The purists will be able to dismount the motor under sail, by placing it either in a cockpit locker or simply place it transversally at the back. Nothing is omitted for a demanding sailor: anchor locker on the foredeck, stowage facilities, opening portlight on the coach-roof face etc…
Beniguet is clinker built in plywood-epoxy. A very modern solution which is also in the spirit of a pure classic boat. By limiting the number of varnished pieces or by replacing them with oiled teak, maintenance will be equivalent to that of a polyester hull. The cockpit is water-tight and self-draining. The ballast is approximately 170 kg, half of which is placed within the centreboard, and therefore quite low in navigation. All this makes Beniguet a very dependable boat.

I invite you to discover the blog of Chris Comerie, building a Beniguet. He started construction during the 2017 winter. He sent me the following comment: “May I take this opportunity of congratulating you on such a beautiful design, she is everything I wanted and hoped for. Your information and drawings are excellent, all uncertainties or potential enquiries can be answered by careful study, the detail and precision is superb.”

Reviews

  1. Peter Bakker

    I have built my Beniguet between 2012 and 2014 from a marine plywood kit. You can take a look at my blog for the building process, but the tekst is in dutch, at http://beniguetmarie.blogspot.nl/ . I had no experience in boat building, but the plans and building guide supplied helped me getting through. As well as some advice from Bert Reijntjes, “de bootbouwer”. It took me a lot of time, and by that a mean it gave me a lot of fun. I didn’t actually count the hours, maybe even some 2000. But then, that is including some things I did the wrong way -stupid me- and had to do again, and some inefficiencies. And as I had quite some sailing experience, and therefore some special wishes, there was some extra work as well.
    I had great expectations as we launched her in may 2014. But she behaved even better. It is a wonderful boat to sail and quite seaworthy. She is small, but that is an advantage as well. This spring we went to Morbihan week, a thousand kilometers drive with the boat behind our 15 year old VW golf, and an equal distance back home, with no problems at all. Launching is easily done with a little inexperienced help, and I can sail her alone if I want. She accomodates two for sleeping, four on day trips. And she is often commented upon admiringly, especially for her beautiful lines.
    You may wonder if this doesn’t sound too positive. Yeah, maybe it does, but I was very happy building her and equally happy with the result. So Francois Vivier, thanks for a wonderful design well translated in thorough building plans. Negative point? Sure, the exact same. She is small, but that is a choice. I’m happy living for a week aboard, but there is, obviously, no place for a shower, so it be a swim instead (I do have a solar camp shower aboard, but that takes to much of my drinking water supply). Her speed naturally is related to her size, but I get regular comments that she is faster than expected. In good wind expect a max of 5.5 knots, but on one occasion I exceptionally clocked a GPS speed of 7.4 knots (no current, I once had 9.5 knots speed on tidal waters, but that is something else). And yes, if I sail on the IJsselmeer, a 1100 km2 stretch of relatively shallow water and therefore often nasty short waves, she is slowed down considerably on windward headings. But those things are only to be expected, and largely outweigh the advantages of being small, like easily going everywhere, trailerable, easy to handle and to store. And a bigger building project wouldn’t have fitted in my shed anyway. And those windward bits are also great fun sailing.
